The Geometry of Failure: How Internal Weld Profiles Drive Corrosion-Erosion

There is a moment, right after a weld passes inspection, when everyone involved feels a quiet sense of closure. The joint meets the requirements, the reports are signed, the coating is applied, and the system moves forward. On paper, the weld is sound. In service, however, especially inside a pipeline, a weld becomes something very different: a geometric and metallurgical disturbance in a moving environment.

Fluids do not read codes; they respond to shape, velocity, and surface condition. And when those factors align in the wrong way, a mechanism emerges that is subtle and aggressive: corrosion-erosion.

Corrosion-erosion is not simply corrosion that happens faster, nor is it purely mechanical wear. It is a coupled degradation process driven by the interaction between electrochemical attack and fluid dynamics. Corrosion weakens the material at the surface, often through the formation and removal of protective films such as oxides. Flow then removes this weakened layer, exposing fresh, more reactive metal beneath. That newly exposed surface corrodes again, and the cycle repeats. Over time, this produces localized material loss that is far more severe than either mechanism acting alone. The presence of a weld amplifies this effect.

When Weld Geometry Disrupts Flow

From a fabrication perspective, small internal features, minor reinforcement at the root, slight high-low misalignment, subtle undercut, or irregular penetration are often within acceptable limits. From a flow perspective, these same features can be critical. They disturb the pipe’s internal profile, altering the flow regime. What may have been predominantly laminar becomes locally turbulent. Velocity gradients increase, and shear stress at the wall intensifies. In systems carrying solids, particles begin to impact preferentially at these disturbed regions, concentrating mechanical damage.

Even in clean systems, the disruption of flow is enough to continuously strip away protective films. In water or wet gas service, this can lead to flow-accelerated corrosion. In multiphase systems, the situation becomes more complex, with liquid droplets, gas phases, and entrained solids interacting dynamically with the weld surface. The weld, in effect, becomes a focal point where hydrodynamics and chemistry converge.

Geometry is only part of the story; a welded joint is inherently heterogeneous. The base metal, weld metal, and heat-affected zone (HAZ) differ in microstructure, composition, and often in hardness. These differences translate into variations in electrochemical potential. Under certain conditions, localized galvanic cells can form across the weld region. One area, often the weld metal or a portion of the HAZ, acts as an anode and corrodes preferentially.

Under static conditions, this may result in relatively slow, localized attack. Under flowing conditions, the situation changes dramatically. Corrosion initiates in the more susceptible region, and erosion prevents the corrosion products from accumulating and forming a protective barrier. Instead, they are continuously removed, keeping the surface active and exposed. The result is accelerated, localized wall loss, often manifesting as grooving along the weld line or preferential thinning at the toe or root.

Beyond Code Compliance

What makes corrosion-erosion particularly challenging is that it develops in areas that are not easily assessed during conventional inspection. Traditional methods, including visual testing, radiography, and standard ultrasonics, are designed to detect discontinuities such as cracks, incomplete fusion, or volumetric defects. They are not intended to evaluate how an internal surface profile will interact with fluid flow over time. A weld can be free of rejectable indications and still present a profile that promotes aggressive degradation in service.

This reveals a critical gap, not in the standards themselves, but in how they are applied. Codes such as AWS D1.1/D1.1M:2025, Structural Welding Code — Steel, establish essential acceptance criteria for fabrication quality. They are not designed to account for every possible service condition, particularly those involving complex flow dynamics and corrosion mechanisms. When compliance with code is treated as a complete measure of fitness for service, important variables can be overlooked.

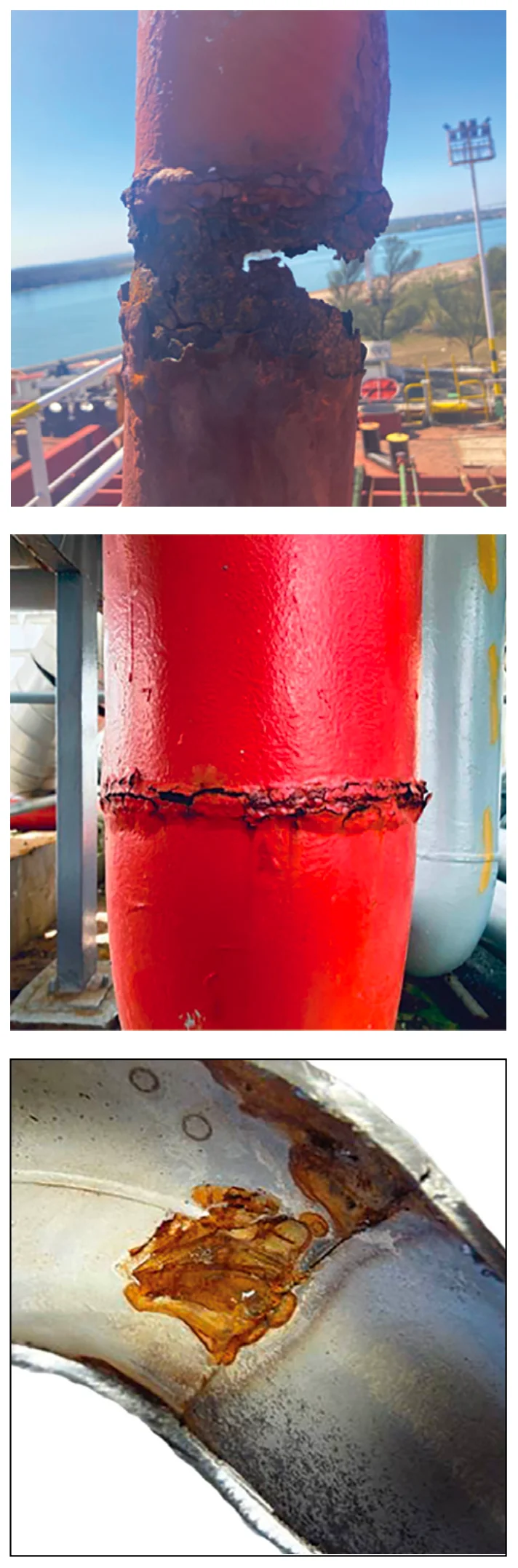

Field observations repeatedly confirm this. Pipelines with fully compliant welds begin to show localized thinning, pitting, or grooving after relatively short periods in operation. In some cases, failure occurs not in the base material but along the weld region itself. The weld did not fail because it was improperly made; it failed because its geometry and metallurgy interacted unfavorably with the service environment.

Addressing corrosion-erosion in welded pipelines requires a broader perspective. Internal weld profile should be considered a functional characteristic, not merely a dimensional one. In systems with high flow velocities, entrained solids, or corrosive media, tighter control of alignment and root geometry may be necessary. In critical applications, postweld internal finishing or design modifications to reduce flow disturbance may be justified.

Equally important is the integration of inspection, corrosion engineering, and flow analysis. Advanced ultrasonic techniques, in-line inspection tools, and targeted monitoring can provide insight into how degradation is developing in service. More importantly, communication between disciplines must improve. Corrosion-
erosion is not the responsibility of a single function; it is the result of their interaction.

Conclusion

A weld can satisfy every requirement during inspection and still fail under real operating conditions. Not because the code is inadequate, but because the environment introduces variables that extend beyond its scope. Understanding this distinction is not a matter of interpretation; it is a matter of recognizing that a weld’s true performance is defined not only at the moment of acceptance but continuously by the conditions it must endure.

JORGE T. REYNA (contacto.jrsa@gmail.com) is owner of JRSA Engineering, Monterrey, Mexico. He is an AMPP Master Coatings Inspector, AMPP Senior Certified Coating Inspector, AMPP Protective Coating Specialist, ASNT Level III, and AWS Senior Certified Welding Inspector.
