Advancing Offshore Marine Riser Inspection

Marine risers are among the most critical components in offshore oil and gas infrastructure, providing the essential connection between subsea production systems and surface facilities. Operating in some of the harshest industrial environments, these structures are exposed to continuous mechanical loading, fluctuating pressures, corrosive fluids, and aggressive marine conditions. Over time, these factors can lead to wall thinning, pitting corrosion, fatigue cracking, and weld defects that threaten both operational reliability and safety.

As offshore assets age and operators seek to extend service life while reducing operational downtime, the demand for more advanced inspection methodologies has grown significantly. Traditional inspection techniques, such as manual ultrasonic testing (UT) and conventional visual inspection, often struggle to deliver the coverage, repeatability, and efficiency required for modern offshore integrity management programs. Access limitations, confined geometries, and the sheer scale of marine riser systems can make manual inspection both time-consuming and inconsistent.

To address these challenges, inspectors can use manual and automated ultrasonic inspection scanners that are designed specifically for marine riser applications. Rather than relying on a single inspection tool, the approach uses multiple specialized scanners that can be deployed individually or in combination, depending on the inspection requirement. Together, these systems provide high-
resolution inspection capability for corrosion mapping, weld assessment, flange inspection, and auxiliary line evaluation.

As shown in Fig. 1, the inspection strategy integrates several complementary scanners with automated deployment systems, encoded positional tracking, and advanced data acquisition technology. Each scanner has been engineered for a specific inspection task, allowing the overall system to achieve greater flexibility and inspection coverage while maintaining highly repeatable results.

Mapping Corrosion in Main Bores and Auxiliary Lines

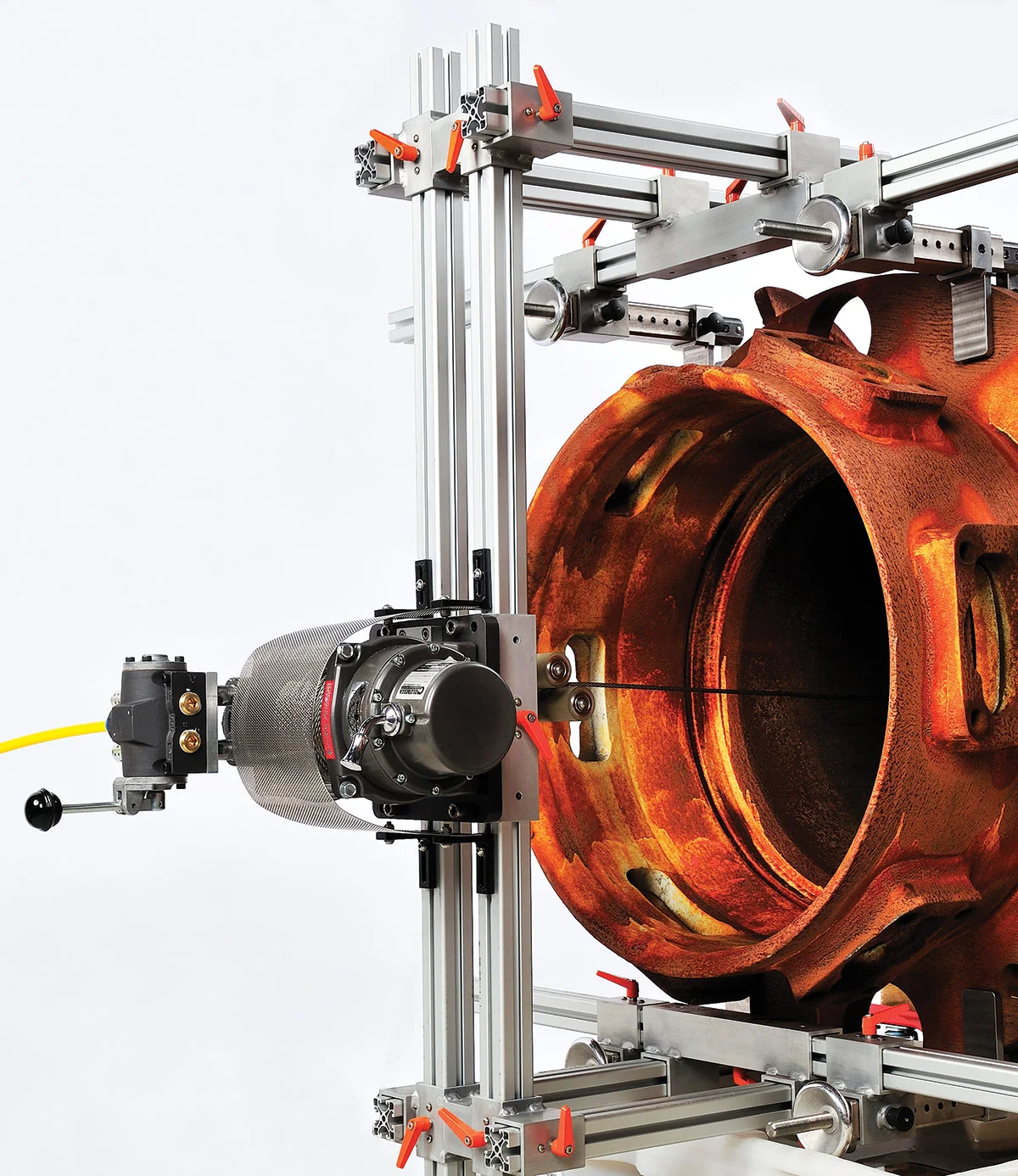

One of the key inspection requirements for marine risers is accurate internal corrosion mapping. Corrosion within the main bore can occur gradually over time and may remain undetected until significant wall loss has developed. To address this, specialized immersion ultrasonic testing scanners equipped with high-channel probe arrays can generate detailed wall-thickness measurements along extended pipe lengths — Fig. 2.

The main bore scanners are deployed using pneumatically driven winch systems that provide controlled traversal through the riser. Integrated encoders continuously monitor scanner position, ensuring accurate spatial correlation between the inspection data and the physical location within the riser. By creating a controlled flooded inspection zone, the scanners maintain stable acoustic coupling and consistent signal transmission throughout the inspection process.

The baseline inspection configuration incorporates 56 immersion probes, while advanced versions can accommodate up to 84, enabling greater circumferential coverage within the bore. This significantly increases data density and improves the probability of detecting localized corrosion or wall thinning.

Auxiliary lines present an additional inspection challenge due to their smaller diameters and more restricted geometries. To overcome this, dedicated auxiliary line scanners have been developed using smaller immersion UT probes configured specifically for narrow bore inspection. Standard systems utilize four probes for continuous thickness monitoring, while more advanced scanners employ a spiral arrangement of 24 probes.

This helical probe configuration is particularly significant because it allows circumferential coverage during axial movement of the scanner. By effectively sweeping around the pipe circumference as the tool travels longitudinally, the design reduces inspection gaps and minimizes the likelihood of missing isolated corrosion features.

Further technological development will introduce convex phased array probes into the auxiliary line scanners. Unlike conventional fixed-beam probes, phased array technology allows electronic beam steering and dynamic focusing. This improves inspection sensitivity and provides greater flexibility when evaluating complex corrosion profiles or irregular geometries.

Assessing Welds and Flanges with Advanced Ultrasonic Methods

In addition to corrosion mapping, weld integrity remains a major focus in marine riser inspection. Weld defects such as incomplete fusion, incomplete penetration, and fatigue cracking can compromise structural performance if not accurately identified and characterized. To address this, dedicated weld inspection scanners that use both phased-array ultrasonic testing (PAUT) and time-of-flight diffraction (TOFD) are employed.

PAUT scanners enable electronic beam steering and sectorial scanning without requiring mechanical movement of the probe itself. This allows inspectors to rapidly and efficiently interrogate weld volumes from multiple angles, improving the detection and characterization of planar defects. The resulting data provides detailed imaging of weld conditions and supports more accurate defect assessment.

TOFD technology complements PAUT by providing highly accurate sizing of crack-like defects. By analyzing diffracted signals generated at defect tips, TOFD enables precise measurement of defect depth and through-wall extent.

The combination of PAUT and TOFD provides a robust inspection methodology that enhances reliability while reducing uncertainty in defect evaluation.

To further support inspection accuracy, visual inspection systems are integrated alongside the ultrasonic scanners. Onboard camera systems confirm weld locations and enable operators to correlate ultrasonic indications with visible physical features. This combination of visual and ultrasonic data improves interpretation confidence and assists with inspection reporting.

Flange inspection represents another critical aspect of marine riser integrity management. Flanges are subjected to high loading and sealing stresses and can be vulnerable to cracking or corrosion, particularly around sealing surfaces and weld interfaces. To inspect these areas effectively, external and internal flange scanners tailored to the specific geometries involved are used.

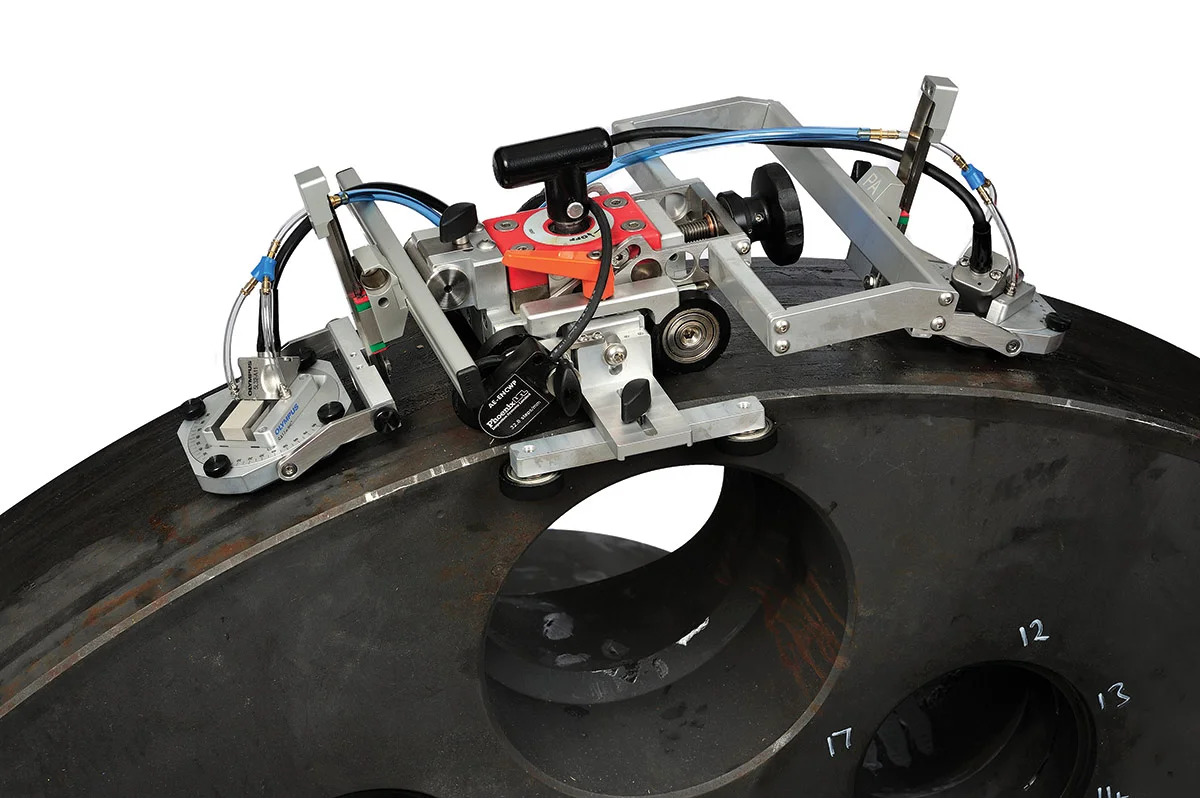

External flange inspection is performed using magnetic scanning buggies equipped with dual phased array probes and positional encoding systems. These scanners can traverse flange surfaces while maintaining stable probe contact and precise positional tracking. Internal flange inspection, meanwhile, is achieved using compact probe carriersand specifically designed for confined access conditions — Fig. 3.

Improving Repeatability through Automation and Validation

An advantage of the overall inspection strategy is its emphasis on automation and semiautomation, as well as repeatability. Manual inspection techniques can be heavily dependent on operator skill and consistency, potentially leading to variability in inspection quality. Automated and semiautomated scanners reduce this dependency by controlling probe positioning, scan speed, and data acquisition parameters throughout the inspection process.

Calibration procedures are performed using reference standards with known reflectors to verify sensitivity, time-base accuracy, and overall probe performance before deployment. During operation, continuous acquisition of encoded data ensures that all measurements are accurately linked to their physical locations, enabling detailed corrosion maps and inspection reports to be generated during postprocessing.

Field trials and laboratory validation programs have demonstrated the effectiveness of the automated scanner suite across a range of offshore inspection scenarios. High-resolution corrosion mapping results have shown improved detection capability compared with conventional UT methods, particularly in identifying localized wall loss and pitting corrosion.

Similarly, weld inspection trials using combined PAUT and TOFD techniques have demonstrated strong performance in detecting and sizing defects with high accuracy and repeatability. The spiral probe configuration being developed for auxiliary line inspection will show significant improvements in circumferential coverage, reducing the risk of missed indications and enhancing the overall probability of detection.

The ability to deploy multiple specialized scanners also provides greater operational flexibility offshore. Inspection programs can be tailored to the specific condition-monitoring requirements of a riser system, allowing operators to focus on areas of greatest concern while minimizing inspection time and associated operational disruption.

Conclusion

As offshore infrastructure continues to age, the importance of advanced integrity assessment technologies will only increase. Operators are under growing pressure to extend asset life safely while controlling maintenance costs and reducing downtime. Automated ultrasonic inspection systems offer a practical pathway to achieving these objectives by delivering more comprehensive inspection data with greater efficiency and reliability.

By combining high-resolution ultrasonic technologies, advanced probe configurations, automated deployment systems, and encoded positional tracking, these specialized scanners represent an advancement in marine riser inspection capability. Their successful application in corrosion mapping, weld assessment, auxiliary line inspection, and flange evaluation demonstrates how automated and semiautomated nondestructive examination systems are helping to establish a new benchmark for offshore integrity management and long-term asset assurance.
